Home/Tractor Mounted Implements/1GZ-330 Hydraulic Foldable Ridger

Tractor Mounted Implements

1GZ-330 Hydraulic Foldable Ridger

Item #1GZ-330

3-in-1 tractor-mounted ridger for soil covering, ridge shaping and compaction in paddy fields.

PriceContact for quotationSend the required model, quantity, working conditions and destination.Email About This Product

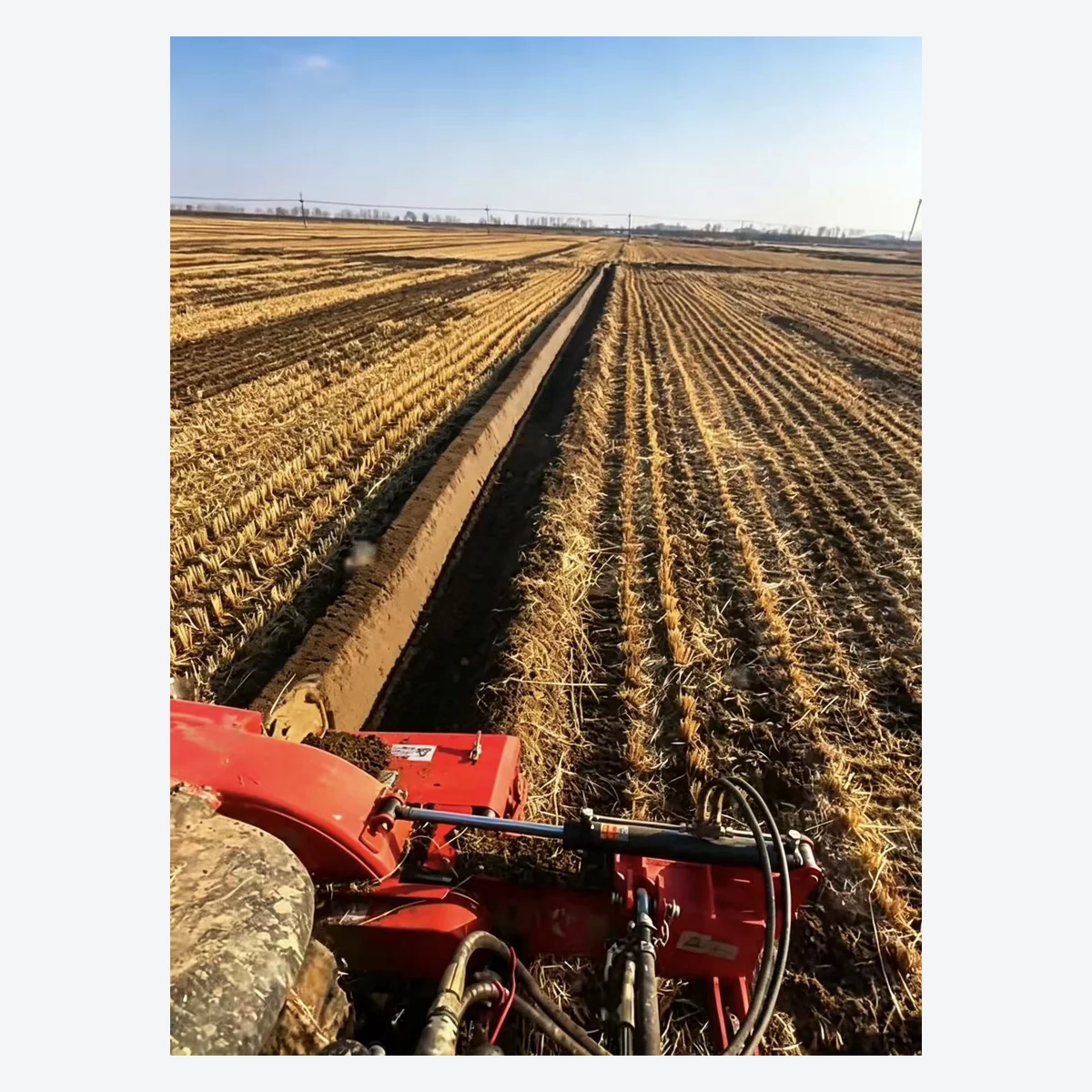

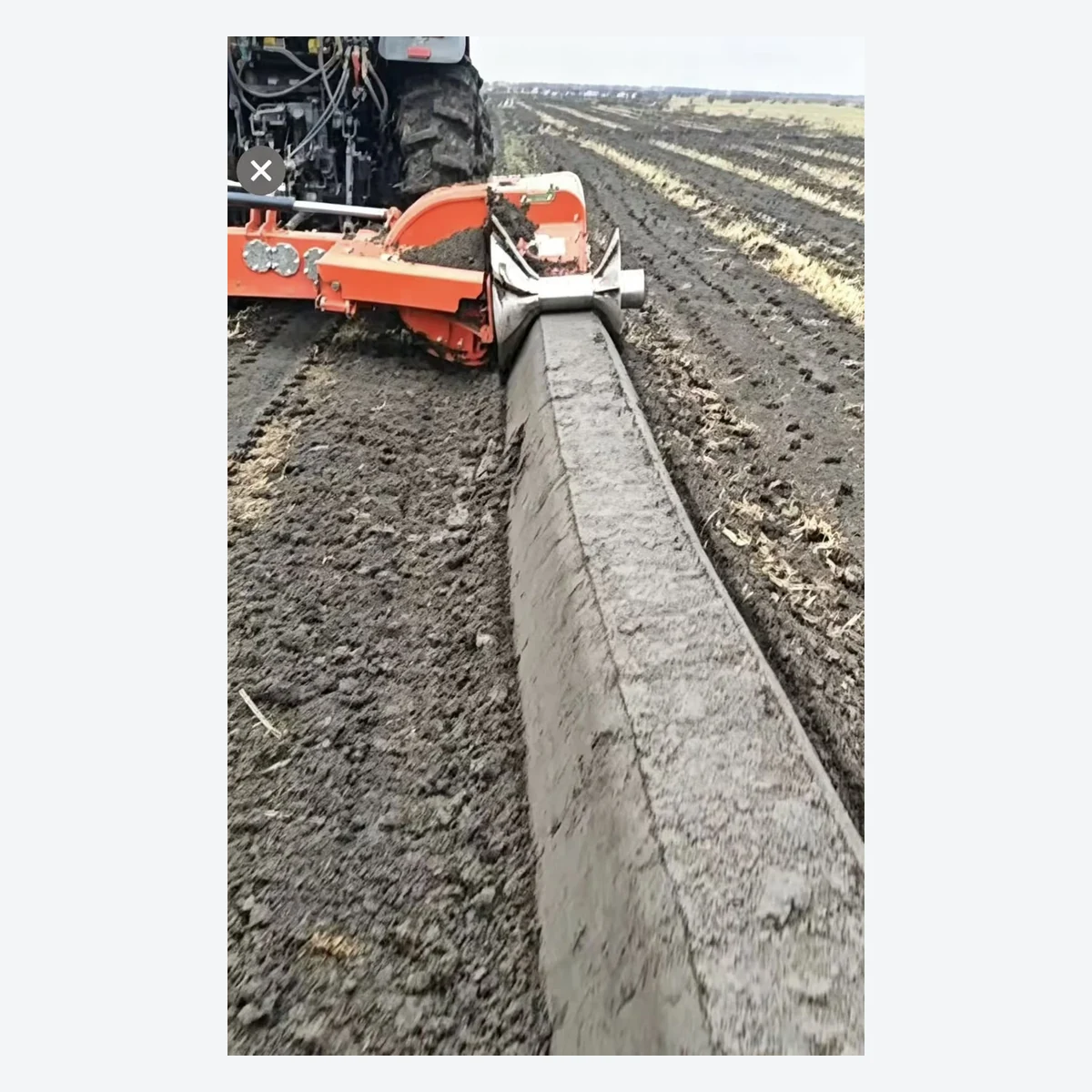

This tractor-mounted machine combines soil covering, ridge shaping and compaction in one pass for efficient paddy-field ridging.

Standard three-point hitch for tractors over 55–60 HP, with lock pins for quick installation and stable field operation.
Thickened soil-digging discs and high-manganese wear-resistant blades for smooth digging, soil crushing and rice-stubble clearing.

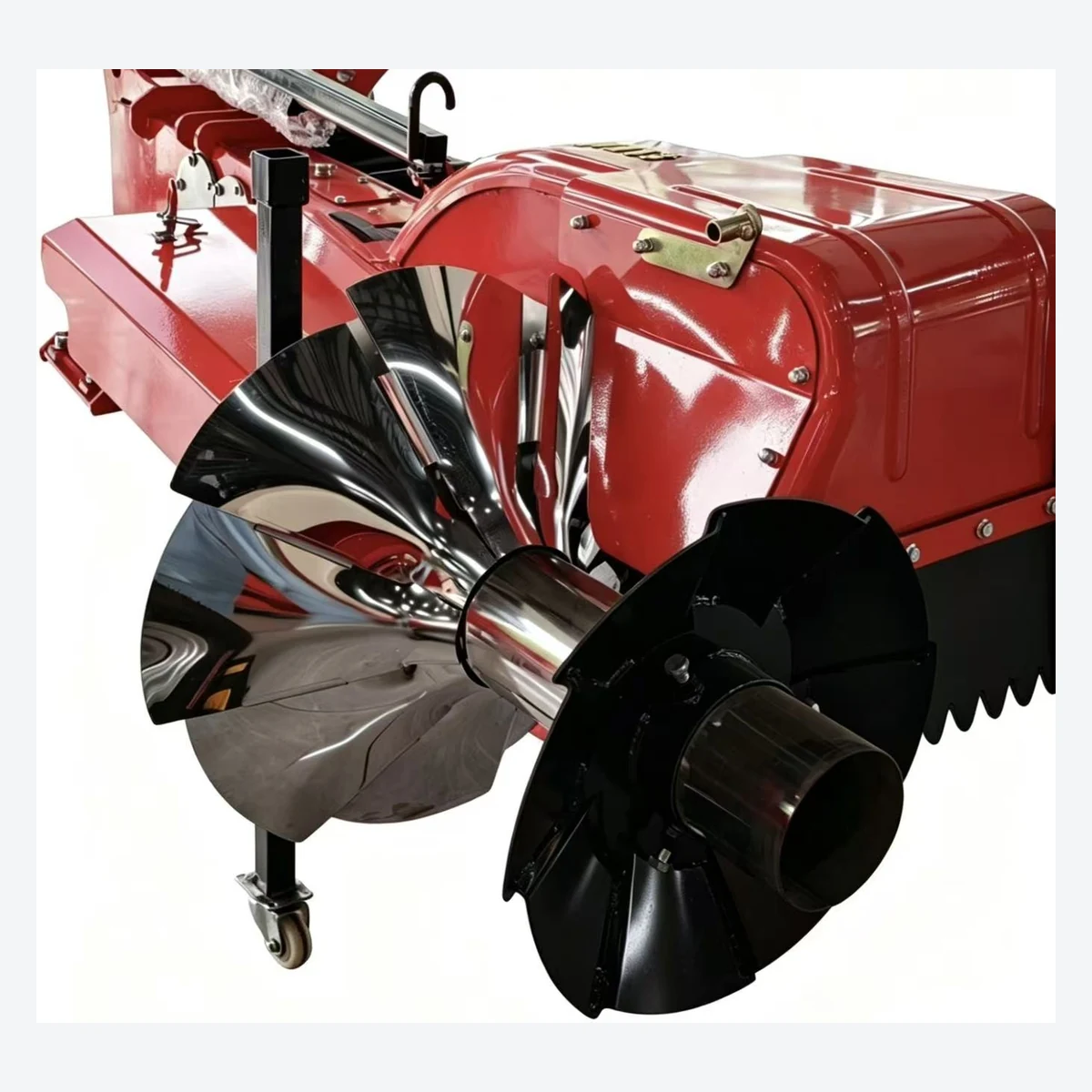

Mirror-polished 304 stainless-steel compaction discs resist corrosion and mud adhesion while producing neat, compact ridges.

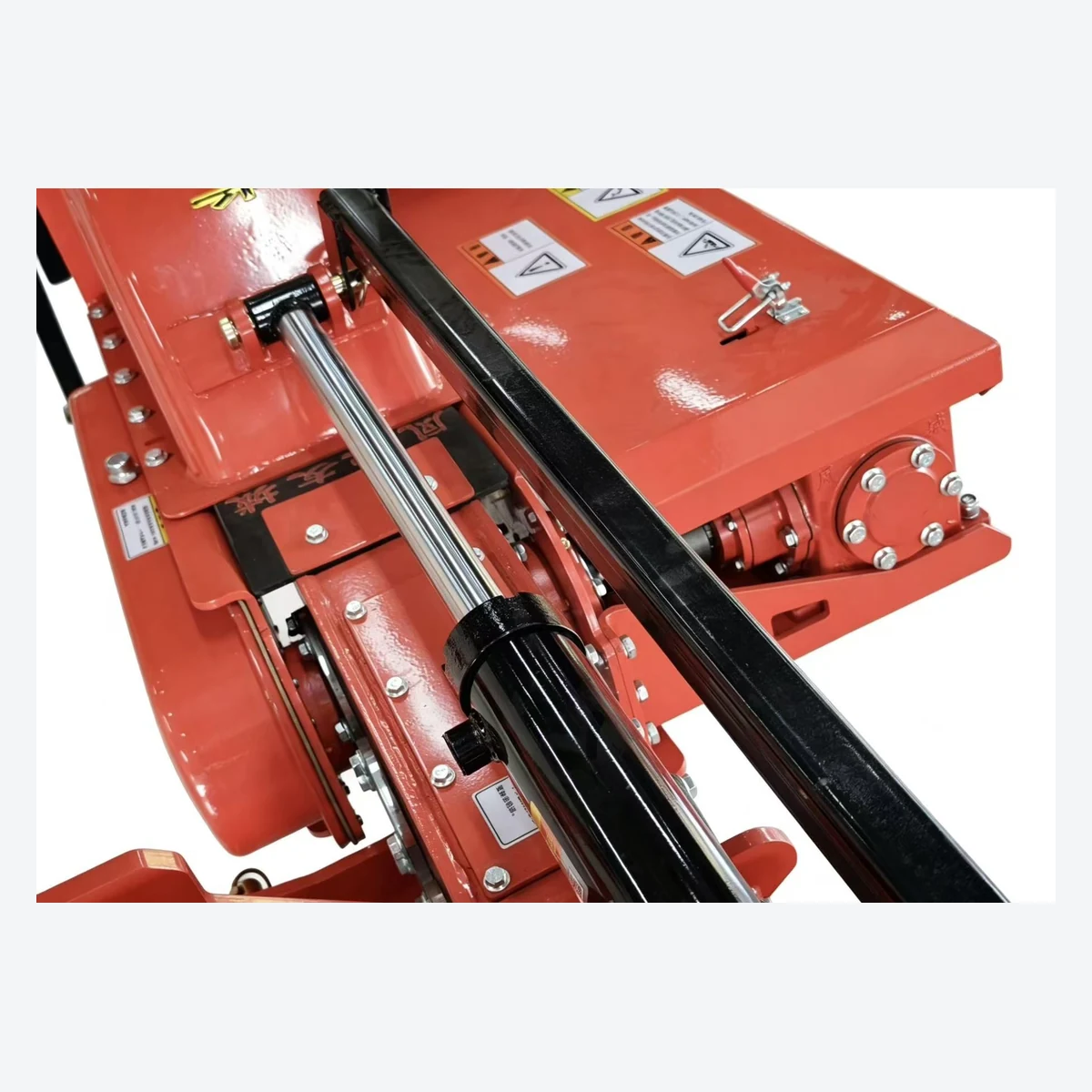

Reinforced foldable hydraulic cylinder supports one-key ridge-height and tilt adjustment with hydraulic self-locking.
Universal-joint drive shaft adapts to changing angles during folding without interrupting power transmission.

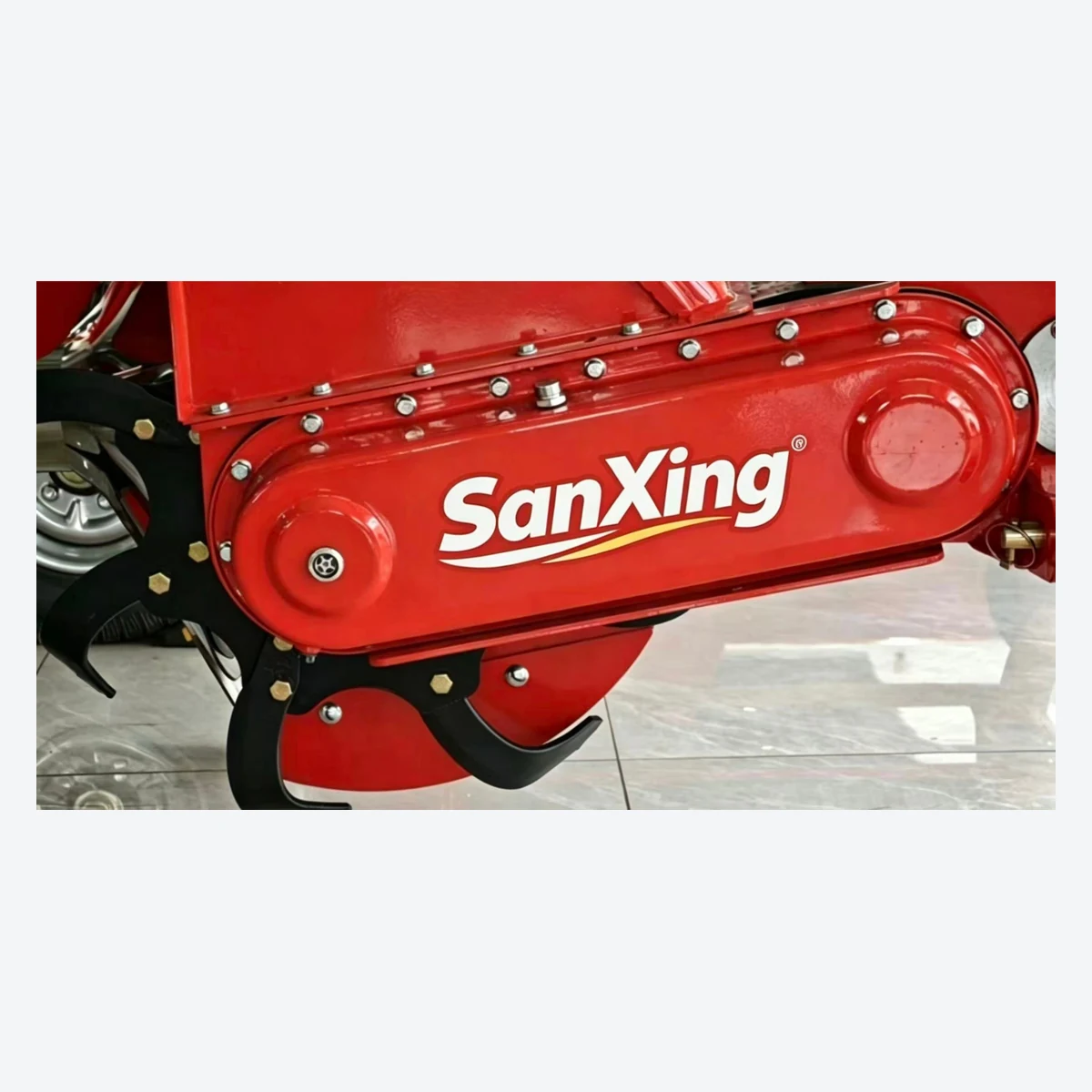

PTO connection with protective sleeve and 16A double-row chain transmission.

Dimensions: Working width/model designation: 330; final dimensions confirmed before order

Material / finish: 304 stainless-steel compaction discs; high-manganese wear-resistant blades

Applications: Paddy-field ridging, soil covering, shaping, compaction and rice-stubble clearing

Dimensions: Working width/model designation: 330; final dimensions confirmed before order

Drive / connection: Three-point hitch, PTO universal-joint drive and 16A double-row chain transmission
Supporting power: Recommended tractor: over 55–60 HP
Key configuration: Hydraulic folding, adjustable ridge height and tilt, self-locking cylinder
Final specification: Confirmed according to the selected model and order requirements

Production: Factory-direct production; stock and lead time confirmed by order quantity
Options: Customized ridge configuration and packaging available
Packaging: Customized protective packaging available. Shipping by sea freight, air freight or international courier according to machine size and order requirements.
Country of origin: China
